远心镜头,远心同轴光镜头
远心按头部外径分为50mm,32mm,26mm,22mm,20mm,18mm,16mm,
32mm以下的大部份远心镜头可以同时提供同轴光与非同轴规格。 |
| 远心镜头50 |
远心镜头32 |
远心镜头26 |
远心镜头20 |
远心镜头18/16 |
 |
 |
 |
 |
 |
|

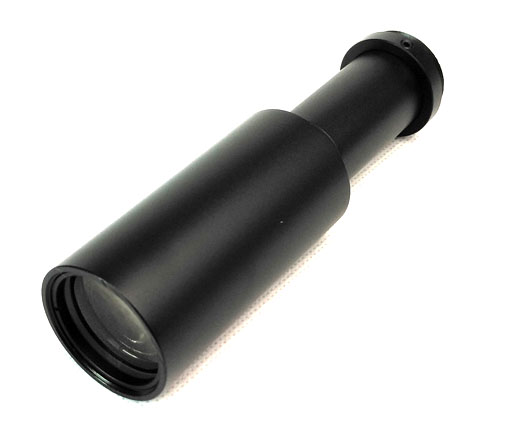

 远心镜头，外径32，视场最大25，适用相机1/4'至2/3'
1.采用物方远心设计,C标准接口,适用相机芯片尺寸:1',2/3',1/1.8',1/2',1/3',1/4',1/6'，最大支持芯片尺寸祥见下表;
2.镜头头部外径16，18，20安装外径为16或18；头部外径22，26，32mm，50mm安装外径为22mm;

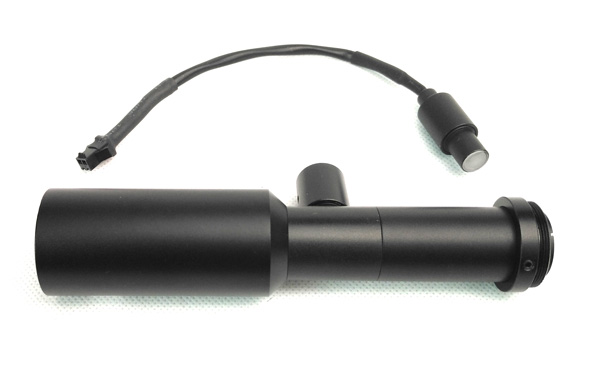

3.同轴光照明,附送远心专用LED同轴照明灯源（不含3V50A电源)，有内部8mm,10mm,14mm的光源接口，或8mm光纤转接口;
4.可以按用户要求定制其它倍率及工作距的镜头。
产品列表说明：
产品按放大率从小到大排列，相同放大率按工作距从小到大排列。
外形图在最后一列，图中WD表示工作距。型号中I表示I型C接口，J表示型C接口，接着是放大率，X后面是工作距，
T表示远心，C表示同轴照明，型号中不带C的表示没有相同的同轴光型号，带C的一般有等同的非同轴光型号
最后面加数字表示头部外径或安装外径。最右边是图纸链接。
|
| 型号 |
倍数 |
工作距 |
景深 |
数值孔径 |
分辨率 |
孔径F# |
畸变% |
远心度 |
镜身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
外形图下载 |
I0.2X200TC32 |
0.20 |
200 |
12.50 |
0.016 |
0.021 |
6.3 |
0.18 |
1‘ |
109.7 |
70.0 |
8.7 |
32 |
22 |
C |
1/4' |
I0.2X200T32 |
I0.27X110TC32 |
0.27 |
110 |
13.47 |
0.011 |
0.031 |
12.3 |
0.07 |
1‘ |
126.0 |
70.0 |
25.0 |
32 |
22 |
C |
1/2.5' |
I0.27X110T32 |
I0.27X110TC32 |
0.27 |
110 |
8.71 |
0.017 |
0.020 |
7.9 |
0.07 |
1‘ |
126.0 |
70.0 |
25.0 |
32 |
22 |
C |
1/2.5' |
I0.27X110T32 |
I0.27X110TC32 |
0.27 |
110 |
6.73 |
0.022 |
0.015 |
6.1 |
0.07 |
1‘ |
126.0 |
70.0 |
25.0 |
32 |
22 |
C |
1/3' |
I0.27X110T32 |
I0.27X110TC32 |
0.27 |
110 |
5.29 |
0.028 |
0.012 |
4.8 |
0.07 |
1‘ |
126.0 |
70.0 |
25.0 |
32 |
22 |
C |
1/3' |
I0.27X110T32 |
I0.3X68TC32 |
0.30 |
68 |
12.12 |
0.011 |
0.031 |
13.6 |
0.25 |
1' |
130.5 |
70.0 |
29.5 |
32 |
22 |
C |
1/2.5 |
I0.3X68T32 |
I0.3X68TC32 |
0.30 |
68 |
9.52 |
0.014 |
0.024 |
10.7 |
0.25 |
1' |
130.5 |
70.0 |
29.5 |
32 |
22 |
C |
1/2.5 |
I0.3X68T32 |
I0.3X68TC32 |
0.30 |
68 |
6.06 |
0.022 |
0.015 |
6.8 |
0.25 |
1' |
130.5 |
70.0 |
29.5 |
32 |
22 |
C |
1/2.5 |
I0.3X68T32 |
I0.3X110TC32 |
0.30 |
110 |
12.12 |
0.011 |
0.031 |
13.6 |
0.02 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/2.5' |
I0.3X110T32 |
I0.3X110TC32 |
0.30 |
110 |
7.84 |
0.017 |
0.020 |
8.8 |
0.02 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/2.5' |
I0.3X110T32 |
I0.3X110TC32 |
0.30 |
110 |
6.06 |
0.022 |
0.015 |
6.8 |
0.02 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/2.5' |
I0.3X110T32 |
I0.3X110TC32 |
0.30 |
110 |
4.76 |
0.028 |
0.012 |
5.4 |
0.02 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/2.5' |
I0.3X110T32 |
I0.3X150TC32 |
0.30 |
150 |
12.12 |
0.011 |
0.031 |
13.6 |
0.20 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/2.5' |
I0.3X150T32 |
I0.3X150TC32 |
0.30 |
150 |
7.84 |
0.017 |
0.020 |
8.8 |
0.20 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/2.5' |
I0.3X150T32 |
I0.3X150TC32 |
0.30 |
150 |
6.06 |
0.022 |
0.015 |
6.8 |
0.20 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/2.5' |
I0.3X150T32 |
I0.3X150TC32 |
0.30 |
150 |
4.76 |
0.028 |
0.012 |
5.4 |
0.20 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/2.5' |
I0.3X150T32 |
I0.3X180TC32 |
0.30 |
180 |
12.12 |
0.011 |
0.031 |
13.6 |
0.32 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/3' |
I0.3X180T32 |
I0.3X180TC32 |
0.30 |
180 |
7.84 |
0.017 |
0.020 |
8.8 |
0.32 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/3' |
I0.3X180T32 |
I0.3X180TC32 |
0.30 |
180 |
6.06 |
0.022 |
0.015 |
6.8 |
0.32 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/3' |
I0.3X180T32 |
I0.3X180TC32 |
0.30 |
180 |
4.76 |
0.028 |
0.012 |
5.4 |
0.32 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/3' |
I0.3X180T32 |
I0.3X200TC32 |
0.30 |
200 |
4.83 |
0.028 |
0.012 |
5.4 |
0.30 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/3' |
I0.3X200T32 |
I0.3X280TC32 |
0.30 |
280 |
4.83 |
0.028 |
0.012 |
5.4 |
0.17 |
1' |
118.1 |
70.0 |
17.1 |
32 |
22 |
C |
1/3' |
I0.3X280T32 |
I0.33X650TC32 |
0.33 |
650 |
7.13 |
0.017 |
0.020 |
9.7 |
0.90 |
1' |
108.0 |
70.0 |
7.0 |
32 |
22 |
C |
1/3' |
I0.33X650T32 |
I0.35X68TC32 |
0.35 |
68 |
10.39 |
0.011 |
0.031 |
15.9 |
0.05 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
1/2' |
I0.35X68T32 |
I0.35X68TC32 |
0.35 |
68 |
10.39 |
0.011 |
0.031 |
15.9 |
0.05 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
1/2' |
I0.35X68T32 |
I0.35X68TC32 |
0.35 |
68 |
7.14 |
0.016 |
0.021 |
10.9 |
0.05 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
1/2' |
I0.35X68T32 |
I0.35X68TC32 |
0.35 |
68 |
7.14 |
0.016 |
0.021 |
10.9 |
0.05 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
1/2' |
I0.35X68T32 |
I0.35X68TC32 |
0.35 |
68 |
5.19 |
0.022 |
0.015 |
8.0 |
0.05 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
1/2' |
I0.35X68T32 |
I0.35X68TC32 |
0.35 |
68 |
5.19 |
0.022 |
0.015 |
8.0 |
0.05 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
1/2' |
I0.35X68T32 |
I0.35X68TC32 |
0.35 |
68 |
4.08 |
0.028 |
0.012 |
6.3 |
0.05 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
1/2' |
I0.35X68T32 |
I0.4X120TC32 |
0.40 |
120 |
4.55 |
0.022 |
0.015 |
9.1 |
0.17 |
1' |
129.5 |
70.0 |
28.5 |
32 |
22 |
C |
1/2' |
I0.4X120T32 |
I0.4X150TC32 |
0.40 |
150 |
4.55 |
0.022 |
0.015 |
9.1 |
0.20 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/2' |
I0.4X150T32 |
I0.4X190TC32 |
0.40 |
190 |
3.57 |
0.028 |
0.012 |
7.1 |
0.14 |
1' |
131.0 |
70.0 |
30.0 |
32 |
22 |
C |
1/2' |
I0.4X190T32 |
I0.4X190TC32 |
0.40 |
190 |
2.56 |
0.039 |
0.009 |
5.1 |
0.14 |
1' |
131.0 |
70.0 |
30.0 |
32 |
22 |
C |
1/2' |
I0.4X190T32 |
型号 |
倍数 |
工作距 |
景深 |
数值孔径 |
分辨率 |
孔径F# |
畸变% |
远心度 |
镜身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
外形图下载 |
I0.4X220T32 |
0.40 |
220 |
4.55 |
0.022 |
0.015 |
9.1 |
0.24 |
1' |
126.0 |
70.0 |
51.0 |
32 |
22 |
C |
1/2.3' |
I0.4X220T32 |
I0.4X305TC32 |
0.40 |
305 |
3.57 |
0.028 |
0.012 |
7.1 |
0.50 |
1' |
117.5 |
70.0 |
16.5 |
32 |
22 |
C |
1/2' |
I0.4X305T32 |
I0.45X150TC32 |
0.45 |
150 |
8.08 |
0.011 |
0.031 |
20.5 |
0.25 |
1' |
128.5 |
70.0 |
27.5 |
32 |
22 |
C |
2/3' |
I0.45X150T32 |
I0.45X150TC32 |
0.45 |
150 |
5.23 |
0.017 |
0.020 |
13.2 |
0.25 |
1' |
128.5 |
70.0 |
27.5 |
32 |
22 |
C |
2/3' |
I0.45X150T32 |
I0.45X150TC32 |
0.45 |
150 |
4.04 |
0.022 |
0.015 |
10.2 |
0.25 |
1' |
128.5 |
70.0 |
27.5 |
32 |
22 |
C |
2/3' |
I0.45X150T32 |
I0.45X150TC32 |
0.45 |
150 |
3.17 |
0.028 |
0.012 |
8.0 |
0.25 |
1' |
128.5 |
70.0 |
27.5 |
32 |
22 |
C |
2/3' |
I0.45X150T32 |
I0.47X110TC32 |
0.47 |
110 |
5.01 |
0.017 |
0.020 |
13.8 |
0.30 |
1' |
131.0 |
70.0 |
30.0 |
32 |
22 |
C |
2/3' |
I0.47X110T32 |
I0.47X110TC32 |
0.47 |
110 |
3.87 |
0.022 |
0.015 |
10.7 |
0.30 |
1' |
131.0 |
70.0 |
30.0 |
32 |
22 |
C |
2/3' |
I0.47X110T32 |
I0.47X280TC32 |
0.47 |
280 |
3.08 |
0.028 |
0.012 |
8.5 |
0.60 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/2' |
I0.47X280T32 |
I0.5X135TC32 |
0.48 |
135 |
2.08 |
0.040 |
0.008 |
6.0 |
0.14 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.5X135T32 |
I0.5X200TC32 |
0.49 |
200 |
4.80 |
0.017 |
0.020 |
14.4 |
0.07 |
1' |
138.5 |
70.0 |
37.5 |
32 |
22 |
C |
1/1.8 |
I0.5X200T32 |
I0.5X200TC32 |
0.49 |
200 |
3.71 |
0.022 |
0.015 |
11.1 |
0.07 |
1' |
138.5 |
70.0 |
37.5 |
32 |
22 |
C |
1/1.8 |
I0.5X200T32 |
I0.5X200TC32 |
0.49 |
200 |
3.02 |
0.027 |
0.012 |
9.1 |
0.07 |
1' |
138.5 |
70.0 |
37.5 |
32 |
22 |
C |
1/1.8 |
I0.5X200T32 |
I0.5X45TC32 |
0.50 |
45 |
2.00 |
0.040 |
0.008 |
6.3 |
0.05 |
1' |
154.5 |
70.0 |
53.5 |
32 |
22 |
C |
1/2' |
I0.5X45T32 |
I0.5X65TC32 |
0.50 |
65 |
7.27 |
0.011 |
0.031 |
22.7 |
0.46 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.5X65T32 |
I0.5X65TC32 |
0.50 |
65 |
4.82 |
0.017 |
0.020 |
15.1 |
0.46 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.5X65T32 |
I0.5X68TC32 |
0.50 |
68 |
2.00 |
0.040 |
0.008 |
6.3 |
0.10 |
1' |
148.0 |
70.0 |
47.0 |
32 |
22 |
C |
1/2' |
I0.5X68T32 |
I0.5X110TC32 |
0.50 |
110 |
7.27 |
0.011 |
0.031 |
22.7 |
0.05 |
1' |
160.5 |
70.0 |
59.5 |
32 |
22 |
C |
2/3' |
I0.5X110T32 |
I0.5X110TC32 |
0.50 |
110 |
4.71 |
0.017 |
0.020 |
14.7 |
0.05 |
1' |
160.5 |
70.0 |
59.5 |
32 |
22 |
C |
2/3' |
I0.5X110T32 |
I0.5X110TC32 |
0.50 |
110 |
3.64 |
0.022 |
0.015 |
11.4 |
0.05 |
1' |
160.5 |
70.0 |
59.5 |
32 |
22 |
C |
1/2' |
I0.5X110T32 |
I0.5X110TC32 |
0.50 |
110 |
2.00 |
0.040 |
0.008 |
6.3 |
0.05 |
1' |
160.5 |
70.0 |
59.5 |
32 |
22 |
C |
1/2' |
I0.5X110T32 |
I0.5X120TC32 |
0.50 |
120 |
2.96 |
0.027 |
0.012 |
9.3 |
0.23 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.5X120T32 |
I0.5X120TC32 |
0.50 |
120 |
2.42 |
0.033 |
0.010 |
7.6 |
0.23 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.5X120T32 |
I0.5X125TC32 |
0.50 |
125 |
2.86 |
0.028 |
0.012 |
8.9 |
0.62 |
1' |
129.5 |
70.0 |
28.5 |
32 |
22 |
C |
1/2' |
I0.5X125T32 |
I0.5X150TC32 |
0.50 |
150 |
4.71 |
0.017 |
0.020 |
14.7 |
0.08 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.5X150T32 |
I0.5X150TC32 |
0.50 |
150 |
4.71 |
0.017 |
0.020 |
14.7 |
0.08 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.5X150T32 |
I0.5X150TC32 |
0.50 |
150 |
3.64 |
0.022 |
0.015 |
11.4 |
0.08 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.5X150T32 |
I0.5X150TC32 |
0.50 |
150 |
2.96 |
0.027 |
0.012 |
9.3 |
0.08 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.5X150T32 |
I0.5X150TC32 |
0.50 |
150 |
2.42 |
0.033 |
0.010 |
7.6 |
0.08 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
1/1.8 |
I0.5X150T32 |
I0.5X150TC32 |
0.50 |
150 |
1.82 |
0.044 |
0.008 |
5.7 |
0.08 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
1/1.8 |
I0.5X150T32 |
I0.5X180TC32 |
0.50 |
180 |
7.27 |
0.011 |
0.031 |
22.7 |
0.07 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.5X180T32 |
I0.5X180TC32 |
0.50 |
180 |
4.71 |
0.017 |
0.020 |
14.7 |
0.07 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.5X180T32 |
I0.5X180TC32 |
0.50 |
180 |
3.64 |
0.022 |
0.015 |
11.4 |
0.07 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.5X180T32 |
I0.5X180TC32 |
0.50 |
180 |
2.86 |
0.028 |
0.012 |
8.9 |
0.07 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.5X180T32 |
I0.5X180TC32 |
0.50 |
180 |
1.82 |
0.044 |
0.008 |
5.7 |
0.07 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
1/1.8 |
I0.5X180T32 |
型号 |
倍数 |
工作距 |
景深 |
数值孔径 |
分辨率 |
孔径F# |
畸变% |
远心度 |
镜身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
外形图下载 |
I0.5X210TC32 |
0.50 |
210 |
2.96 |
0.027 |
0.012 |
9.3 |
0.23 |
1' |
138.5 |
70.0 |
37.5 |
32 |
22 |
C |
1/2' |
I0.5X210T32 |
I0.5X210TC32 |
0.50 |
210 |
2.42 |
0.033 |
0.010 |
7.6 |
0.23 |
1' |
138.5 |
70.0 |
37.5 |
32 |
22 |
C |
1/2' |
I0.5X210T32 |
I0.5X265TC32 |
0.50 |
265 |
4.71 |
0.017 |
0.020 |
14.7 |
0.40 |
1' |
126.0 |
70.0 |
25.0 |
32 |
22 |
C |
2/3' |
I0.5X265T32 |
I0.5X265TC32 |
0.50 |
265 |
2.86 |
0.028 |
0.012 |
8.9 |
0.40 |
1' |
126.0 |
70.0 |
25.0 |
32 |
22 |
C |
1/2' |
I0.5X265T32 |
I0.5X350TC32 |
0.50 |
350 |
4.71 |
0.017 |
0.020 |
14.7 |
1.20 |
1' |
119.0 |
70.0 |
18.0 |
32 |
22 |
C |
2/3' |
I0.5X350T32 |
I0.5X350TC32 |
0.50 |
350 |
2.86 |
0.028 |
0.012 |
8.9 |
0.80 |
1' |
119.0 |
70.0 |
18.0 |
32 |
22 |
C |
1/2' |
I0.5X350T32 |
I0.5X400TC32 |
0.50 |
400 |
3.64 |
0.022 |
0.015 |
11.4 |
0.60 |
1' |
115.8 |
70.0 |
14.8 |
32 |
22 |
C |
1/3‘ |
I0.5X400T32 |
I0.5X500TC32 |
0.50 |
500 |
3.64 |
0.022 |
0.015 |
11.4 |
0.80 |
1' |
120.5 |
70.0 |
19.5 |
32 |
22 |
C |
1/2' |
I0.5X500T32 |
I0.5X510TC32 |
0.50 |
510 |
3.64 |
0.022 |
0.015 |
11.4 |
0.80 |
1' |
120.5 |
70.0 |
19.5 |
32 |
22 |
C |
1/2' |
I0.5X510T32 |
I0.5X550TC32 |
0.50 |
550 |
4.71 |
0.017 |
0.020 |
14.7 |
0.90 |
1' |
114.5 |
70.0 |
13.5 |
32 |
22 |
C |
1/2.5' |
I0.5X550T32 |
I0.5X630TC32 |
0.50 |
630 |
4.71 |
0.017 |
0.020 |
14.7 |
0.90 |
1' |
118.5 |
70.0 |
17.5 |
32 |
22 |
C |
1/2.5' |
I0.5X630T32 |
I0.5X700TC32 |
0.50 |
700 |
7.27 |
0.011 |
0.031 |
22.7 |
0.90 |
1' |
122.0 |
70.0 |
21.0 |
32 |
22 |
C |
1/2.5' |
I0.5X700T32 |
I0.5X80TC32 |
0.53 |
80 |
4.44 |
0.017 |
0.020 |
15.6 |
0.03 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.5X80T32 |
I0.5X80TC32 |
0.53 |
80 |
3.43 |
0.022 |
0.015 |
12.0 |
0.03 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
1/1.8' |
I0.5X80T32 |
I0.5X80TC32 |
0.53 |
80 |
2.70 |
0.028 |
0.012 |
9.5 |
0.03 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
1/2' |
I0.5X80T32 |
I0.53X110TC32 |
0.53 |
110 |
2.70 |
0.028 |
0.012 |
9.5 |
0.02 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
1/2' |
I0.53X110T32 |
I0.5X250TC32 |
0.53 |
250 |
2.70 |
0.028 |
0.012 |
9.5 |
0.40 |
1' |
129.5 |
70.0 |
28.5 |
32 |
22 |
C |
1/2' |
I0.5X250T32 |
I0.55X68TC32 |
0.55 |
68 |
2.60 |
0.028 |
0.012 |
9.8 |
0.07 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
1/2' |
I0.55X68T32 |
I0.55X75TC |
0.55 |
75 |
6.61 |
0.011 |
0.031 |
25.0 |
0.24 |
1' |
138.5 |
70.0 |
37.5 |
32 |
22 |
C |
2/3' |
I0.55X75T32 |
I0.55X75TC |
0.55 |
75 |
4.55 |
0.016 |
0.021 |
17.2 |
0.24 |
1' |
138.5 |
70.0 |
37.5 |
32 |
22 |
C |
2/3' |
I0.55X75T32 |
I0.55X75TC |
0.55 |
75 |
3.31 |
0.022 |
0.015 |
12.5 |
0.19 |
1' |
138.5 |
70.0 |
37.5 |
32 |
22 |
C |
1/1.8' |
I0.55X75T32 |
I0.55X75TC |
0.55 |
75 |
2.60 |
0.028 |
0.012 |
9.8 |
0.16 |
1' |
138.5 |
70.0 |
37.5 |
32 |
22 |
C |
1/2' |
I0.55X75T32 |
I0.6X68TC32 |
0.60 |
68 |
6.06 |
0.011 |
0.031 |
27.3 |
0.70 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.6X68T32 |
I0.6X68TC32 |
0.60 |
68 |
3.92 |
0.017 |
0.020 |
17.6 |
0.70 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.6X68T32 |
I0.6X68TC32 |
0.60 |
68 |
3.92 |
0.017 |
0.020 |
17.6 |
0.70 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.6X68T32 |
I0.6X68TC32 |
0.60 |
68 |
3.03 |
0.022 |
0.015 |
13.6 |
0.70 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.6X68T32 |
I0.6X68TC32 |
0.60 |
68 |
2.38 |
0.028 |
0.012 |
10.7 |
0.70 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.6X68T32 |
I0.6X150TC32 |
0.60 |
150 |
2.38 |
0.028 |
0.012 |
10.7 |
0.05 |
1' |
160.5 |
70.0 |
59.5 |
32 |
22 |
C |
2/3' |
I0.6X150T32 |
I0.6X240TC32 |
0.60 |
240 |
2.42 |
0.028 |
0.012 |
10.9 |
0.60 |
1' |
133.0 |
70.0 |
32.0 |
32 |
22 |
C |
2/3' |
I0.6X240T32 |
I0.7X68TC32 |
0.70 |
68 |
5.19 |
0.011 |
0.031 |
31.8 |
0.23 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.7X68T32 |
I0.7X68TC32 |
0.70 |
68 |
3.36 |
0.017 |
0.020 |
20.6 |
0.23 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.7X68T32 |
I0.7X68TC32 |
0.70 |
68 |
2.60 |
0.022 |
0.015 |
15.9 |
0.23 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.7X68T32 |
I0.7X68TC32 |
0.70 |
68 |
2.04 |
0.028 |
0.012 |
12.5 |
0.23 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
1/2' |
I0.7X68T32 |
I0.7X110TC32 |
0.70 |
110 |
5.19 |
0.011 |
0.031 |
31.8 |
0.27 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.7X110T32 |
I0.7X110TC32 |
0.70 |
110 |
3.36 |
0.017 |
0.020 |
20.6 |
0.27 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.7X110T32 |
型号 |
倍数 |
工作距 |
景深 |
数值孔径 |
分辨率 |
孔径F# |
畸变% |
远心度 |
镜身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
外形图下载 |
I0.7X110TC32 |
0.70 |
110 |
2.60 |
0.022 |
0.015 |
15.9 |
0.27 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.7X110T32 |
I0.7X110TC32 |
0.70 |
110 |
2.04 |
0.028 |
0.012 |
12.5 |
0.27 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
1/2' |
I0.7X110T32 |
I0.7X330TC32 |
0.70 |
330 |
2.60 |
0.022 |
0.015 |
15.9 |
0.70 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
1/2' |
I0.7X330T32 |
I0.7X410TC32 |
0.70 |
410 |
2.60 |
0.022 |
0.015 |
15.9 |
0.60 |
1' |
147.5 |
70.0 |
46.5 |
32 |
22 |
C |
1/2' |
I0.7X410T32 |
I0.8X65TC32 |
0.80 |
65 |
1.81 |
0.028 |
0.012 |
14.5 |
0.15 |
1' |
160.5 |
70.0 |
59.5 |
32 |
22 |
C |
2/3' |
I0.8X65T32 |
I0.8X80TC32 |
0.80 |
80 |
1.79 |
0.028 |
0.012 |
14.3 |
0.25 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
1/2' |
I0.8X80T32 |
I0.8X110TC32 |
0.80 |
110 |
4.55 |
0.011 |
0.031 |
36.4 |
0.45 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.8X110T32 |
I0.8X110TC32 |
0.80 |
110 |
3.13 |
0.016 |
0.021 |
25.0 |
0.45 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.8X110T32 |
I0.8X110TC32 |
0.80 |
110 |
2.27 |
0.022 |
0.015 |
18.2 |
0.45 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.8X110T32 |
I0.8X110TC32 |
0.80 |
110 |
1.79 |
0.028 |
0.012 |
14.3 |
0.45 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.8X110T32 |
I0.8X110TC32 |
0.80 |
110 |
1.52 |
0.033 |
0.010 |
12.1 |
0.45 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.8X110T32 |
I0.8X150TC32 |
0.80 |
150 |
1.79 |
0.028 |
0.012 |
14.3 |
0.90 |
1' |
134.5 |
70.0 |
33.5 |
32 |
22 |
C |
2/3' |
I0.8X150T32 |
I0.8X180TC32 |
0.80 |
180 |
1.72 |
0.029 |
0.012 |
13.8 |
0.90 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I0.8X180T32 |
I0.8X300TC32 |
0.80 |
300 |
4.55 |
0.011 |
0.031 |
36.4 |
0.88 |
1' |
134.5 |
70.0 |
59.5 |
32 |
22 |
C |
2/3' |
I0.8X300T32 |
I0.8X300TC32 |
0.80 |
300 |
3.13 |
0.016 |
0.021 |
25.0 |
0.88 |
1' |
134.5 |
70.0 |
59.5 |
32 |
22 |
C |
2/3' |
I0.8X300T32 |
I0.8X300TC32 |
0.80 |
300 |
2.27 |
0.022 |
0.015 |
18.2 |
0.88 |
1' |
134.5 |
70.0 |
59.5 |
32 |
22 |
C |
2/3' |
I0.8X300T32 |
I1X360TC32 |
0.97 |
360 |
1.47 |
0.028 |
0.012 |
17.3 |
0.60 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I1X360T32 |
I1X350TC32 |
0.99 |
350 |
1.44 |
0.028 |
0.012 |
17.7 |
0.60 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I1X350T32 |
I1X65TC32 |
1.00 |
65 |
1.43 |
0.028 |
0.012 |
17.9 |
0.40 |
1' |
160.5 |
70.0 |
59.5 |
32 |
22 |
C |
2/3' |
I1X65T32 |
I1X80TC32 |
1.00 |
80 |
1.43 |
0.028 |
0.012 |
17.9 |
0.70 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I1X80T32 |
I1X110TC32 |
1.00 |
110 |
1.43 |
0.028 |
0.012 |
17.9 |
0.60 |
1' |
143.5 |
70.0 |
42.5 |
32 |
22 |
C |
2/3' |
I1X110T32 |
I1X110T32y8C32 |
1.00 |
110 |
1.21 |
0.033 |
0.010 |
15.2 |
0.92 |
1' |
148.0 |
70.0 |
47.0 |
32 |
22 |
C |
1" |
I1X110T32y8 |
I1X145TC32 |
1.00 |
145 |
1.43 |
0.028 |
0.012 |
17.9 |
0.60 |
1' |
145.5 |
70.0 |
44.5 |
32 |
22 |
C |
2/3' |
I1X145T32 |
I1X150TC32 |
1.00 |
150 |
1.43 |
0.028 |
0.012 |
17.9 |
0.40 |
1' |
160.5 |
70.0 |
59.5 |
32 |
22 |
C |
2/3' |
I1X150T32 |
I1X260TC32 |
1.00 |
260 |
1.48 |
0.027 |
0.012 |
18.5 |
0.87 |
1' |
138.5 |
70.0 |
37.5 |
32 |
22 |
C |
2/3' |
I1X260T32 |
I1X400TC32 |
1.00 |
400 |
1.82 |
0.022 |
0.015 |
22.7 |
0.55 |
1' |
131.7 |
70.0 |
30.7 |
32 |
22 |
C |
2/3' |
I1X400T32 |
I1X450TC32 |
1.00 |
450 |
1.82 |
0.022 |
0.015 |
22.7 |
0.58 |
1' |
140.2 |
70.0 |
39.2 |
32 |
22 |
C |
2/3' |
I1X450T32 |
I1X530TC32 |
1.00 |
530 |
2.35 |
0.017 |
0.020 |
29.4 |
0.55 |
1' |
151.5 |
70.0 |
50.5 |
32 |
22 |
C |
2/3' |
I1X530T32 |
I1X630TC32 |
1.00 |
630 |
2.35 |
0.017 |
0.020 |
29.4 |
0.33 |
1' |
160.5 |
70.0 |
59.5 |
32 |
22 |
C |
1/2' |
I1X630T32 |
型号 |
倍数 |
工作距 |
景深 |
数值孔径 |
分辨率 |
孔径F# |
畸变% |
远心度 |
镜身L0 |
L1 |
L2 |
d1 |
d2 |
接口 |
最大接收器 |
外形图下载 |
|
|
